Motor Grader Wear Parts Reference
Browse Motor Grader wear parts by product type, brand, machine model, part number, and reference dimensions. Data is for identification and compatibility reference only.
18
Wear parts in reference
3
Product types
29
Models covered
2
Brands
Browse by Product Type
Featured Parts
| Part | Part Number | Part Type | Compatible Models | Key Specifications | Actions |
|---|---|---|---|---|---|
 | 1055183 30 mm Grader Bit | Grader Blade | 120K / 12K / 140K / 120M | 30mm grader bit Bit pin system | |
 | 3072613 Rotating Bit Adapter Board | Adapter | 120K / 12K / 140K / 120M | 5.9in width / 3ft board / 7 bits per board 7/8in hardware set | |
| | 4286747 Grader Bit Adapter Board | Adapter | 120K / 12K / 140K / 120M | Narrow gap / 2ft board / 10 bits per board Adapter board hardware | |

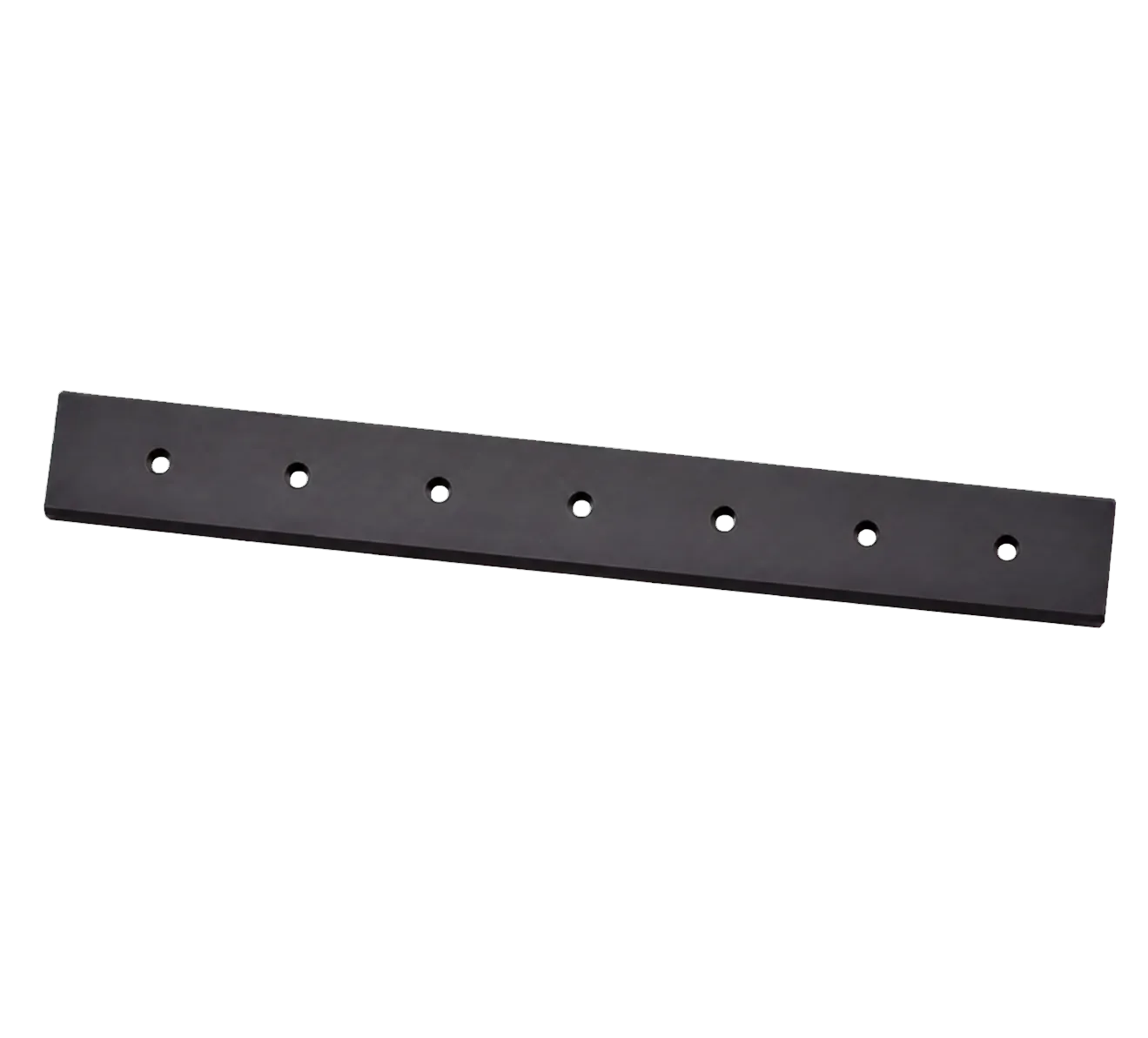

| | 9J3660 Curved Standard Moldboard Edge | Grader Blade | 120K / 12K / 140K / 120M | 6in width / 6ft length / 13mm thickness 5J4773 | |
| | M5D9553 Grader Blade | Grader Blade | 120 / 120B / 120G / 120H | DBC 16X152X1828 3F5108 | |
| | M7D1158 Grader Blade | Grader Blade | 160H / 14H / 14G / 120G | DBC 16X203X2133 5J4773 | |
| | 1055180 23 mm Grader Bit | Grader Blade | 120K / 12K / 140K / 120M | 23mm grader bit Bit pin system | |
| | 1590318 Grader Bit Adapter Board | Adapter | 120K / 12K / 140K / 120M | Narrow gap / 3ft board / 15 bits per board Adapter board hardware |
Related Equipment
Can't find the part you need?
Send a part number, machine model, dimensions, or a photo and we can help narrow the match.
Manual Match Request
