CAT 120K Wear Parts Reference

Reference directory for CAT 120K wear parts, part numbers, compatible systems and hardware.

Catalog Parts
11
parts listed
Main systems
3
12 ft Grader Blade / 3/4 in Bolt Holes / 12 ft Grader Specialty Wear System
Brand
Caterpillar
Equipment Type
Motor Grader

Category Breakdown

Cutting Edges

7 parts
View parts

End Bits

0 parts
View parts

Hardware

6 parts
View parts

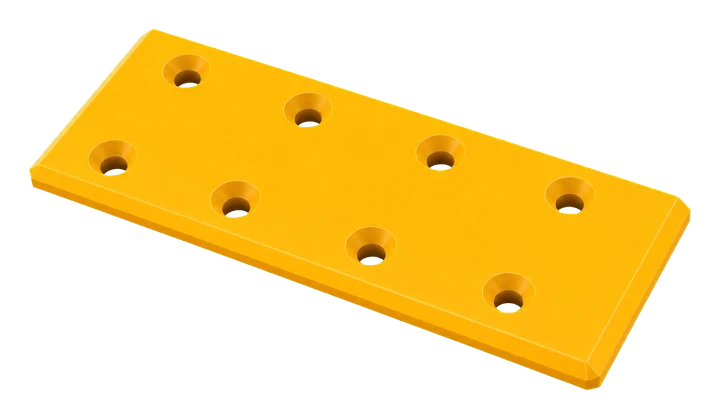

Wear Plates

0 parts
View parts

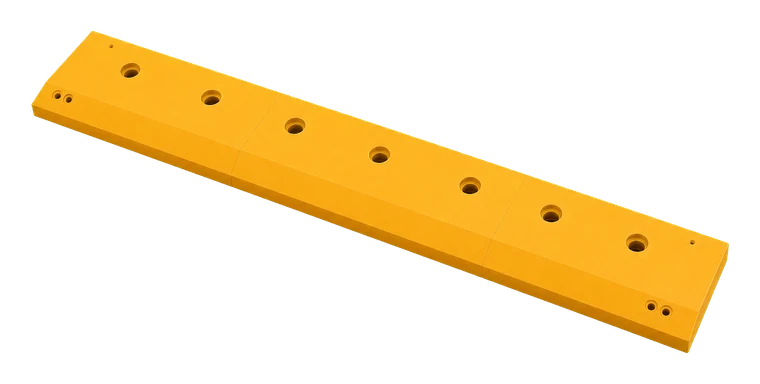

A. Cutting Edges

Part Part No Dimension Action
9J3660
Curved Standard Moldboard Edge
6in width / 6ft length / 13mm thickness
5J4773 + 2J3506
View Details Request Quote
9J3657
Curved Standard Moldboard Edge
6in width / 6ft length / 16mm thickness
5J4773 + 2J3506
View Details Request Quote
9J7701
Curved Standard Moldboard Edge
8in width / 6ft length / 16mm thickness
5J4773 + 2J3506
View Details Request Quote
1055183
30 mm Grader Bit
30mm grader bit
Bit pin system + Bit retainer system
View Details Request Quote
1055180
23 mm Grader Bit
23mm grader bit
Bit pin system + Bit retainer system
View Details Request Quote

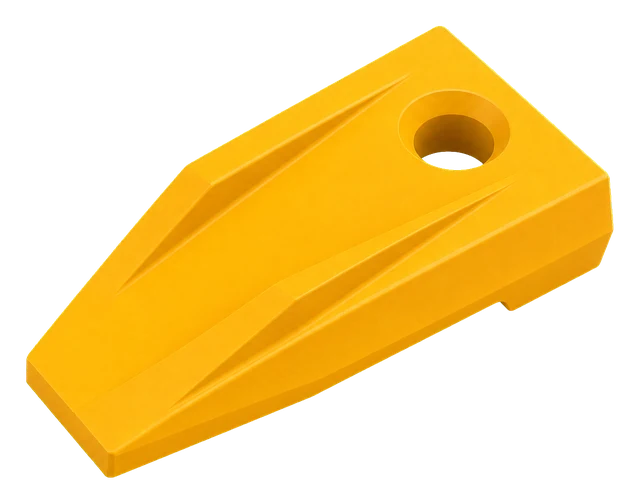

B. End Bits

Part Part No Dimension Action
No matching catalog rows yet.

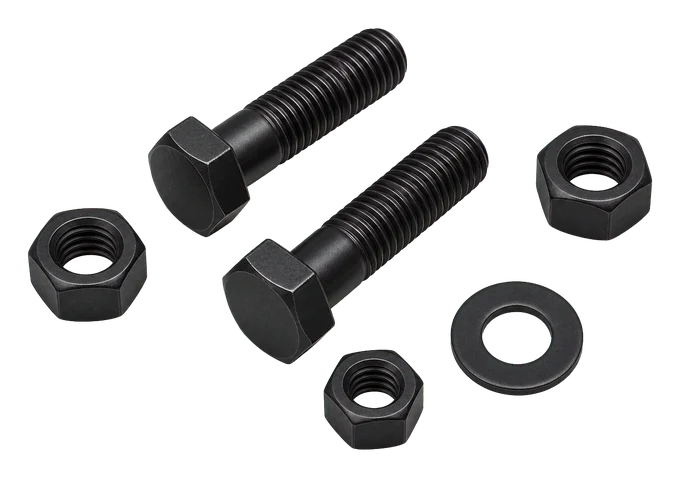

C. Hardware

Part Part No Used With Action
5J4773
Track Bolt · 5J4773
Curved Standard Moldboard Edge
View Details Request Quote
2J3506
Track Nut · 2J3506
Curved Standard Moldboard Edge
View Details Request Quote
7/8in hardware set
Track Bolt · 7/8in hardware set
Rotating Bit Adapter Board
View Details Request Quote
Matching hardware
Track Nut · Matching hardware
Rotating Bit Adapter Board, Mining Bit Adapter Board
View Details Request Quote
M-WR58
Flat Washer · 5/8
Cutting Edges, End Bits
View Details Request Quote
M-LK58
Lock Washer · 5/8
Cutting Edges, End Bits
View Details Request Quote

Compatible / Related Models

CAT D8 CAT 120M CAT 12K CAT 12M

Need help finding the right CAT 120K part?

Send part number, dimensions, or a photo and we'll help identify a possible match.

Manual Match Request Request Quote
